Description

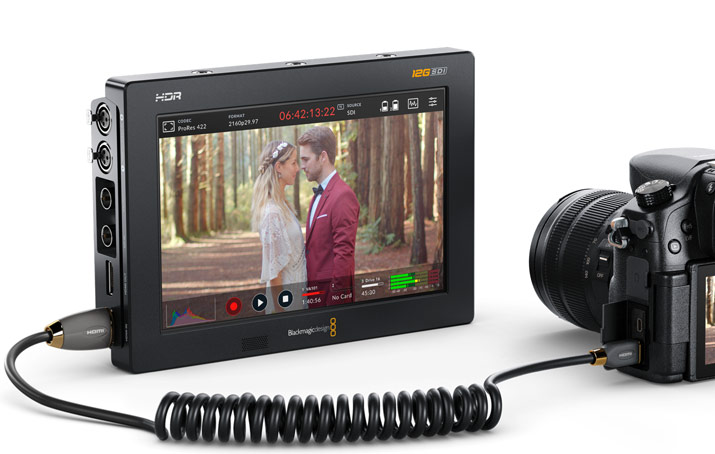

The Black Magic Video Assist is a 5 inch 1920 x 1080 high resolution screen that can be added to your camera setup to ensure that you capture perfect focus every time as well as perfect framing. The monitor has a built in recorder that uses high speed, inexpensive SD cards to record ProRes and DNxHD, this means that there is a faster post production time allowing editing to be immediate. Touch screen control make adjustments a breeze. Every function is at your fingertips – from changing settings, evaluating audio levels, to checking your histogram, current input frame rate, timecode – all while keeping your eyes on the ultimate shot.

Tecnincal Specs:
SDI Video Input
1 x SD/HD/3G/6G-SDI via DIN 1.0/2.3 connector

SDI Video Output
1 x SD/HD/3G-SDI via DIN 1.0/2.3 connector

HDMI Video Input
1 x HDMI type A connector

HDMI Video Output
1 x HDMI type A connector

SDI Audio Input
16 channels embedded in SD and HD in QuickTime files, 2 channels in Avid DNxHD MXF files

SDI Audio Output
16 channels embedded in SD and HD in QuickTime files, 2 channels in Avid DNxHD MXF files

HDMI Audio Input
2 channels embedded in SD and HD QuickTime files and Avid DNxHD MXF files.

HDMI Audio Output
2 channels embedded in SD and HD QuickTime files and Avid DNxHD MXF files.

Audio Output
1 x 3.5 mm stereo analog audio output jack.

SD Interface
1 x UHS-1 SD slot

Storage Type
Removable SDXC UHS-1 and SDHC UHS-1 cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

Recorder Control
Integrated capacitive touch LCD screen with onscreen controls for settings and navigating menus.

Screen Dimensions
5″ 1920 x 1080p60 capacitive touchscreen LCD.

Recorder Configuration
Via the device’s USB port or the device’s user interface.

Computer Interface
1 x Mini-B USB 2.0 connector for initial setup, software updates and HyperDeck Utility software control.
